HomeGigE Vision-compliant, 1.45 megapixels, 31 frame/sec
Progressive Scan Camera
FC1650GE
Overview
- High-speed progressive scan camera with 1.45 megapixel CCD operating at 31 fps frame rate.
- Video signal is output complying with Gigabit Ethernet in progressive scanning (non-interlaced scanning) format.
- GigE Vision compliant.
- 12/10/8-bit digital image output (switchable).
- The internal set values of the camera are externally controlled with serial communication via Ethernet.
- Asynchronous electronic shutter function provides still full frame images at any timing (Asynchronous shutter mode).
- 2/3 inch CCD image sensor is used to attain high sensitivity.
Also the camera is suitable for the shooting in the near-infrared region.
Features
- Capable of image transmission over 100m without repeater.
- Capable of capturing images in PC without image capture board.
- Equipped with IP engine for high speed image transmission.
Jumbo frame packet-compatible. - When the external trigger signal is input, the image is reset in random timing (Asynchronous timing) and the electronic shutter image can be obtained at a given point in time. (Asynchronous shutter mode)
- Camera connector (6-pins) has the trigger input terminal and the strobe timing signal output terminal for high speed random shutter (Asynchronous shutter)
- Variant trigger modes including asynchronous shutter in H-reset mode are equipped.
- The current setting status of the camera can be displayed over the captured image using superimposing function that is capable of displaying text information by OSD.
- The camera is shipped with SDK including viewer software and various sample program sources.
Applications
- Input device for electronic shutter image processor
- Appearance inspection device
- Monitoring equipment
- Inspection device for electronic packaging
- Image input device for ITS such as car number reading
- Input device for image processor connected to computer through networks.
Spectral sensitivity
Specifications
| Image Sensor | Progressive scanning, Interline transfer CCD 2/3 inch size Unit cell size: 6.45µm(H) × 6.45µm(V) |
|
|---|---|---|
| Effective Pixels | 1392(H) × 1040(V)Square grid pattern | |
| Read Out Scanning |
Horizontal Scanning | fH= 33.5 kHz |
| Vertical Scanning | fV= 31.4 Hz | |
| Pixel Clock | fCLK= 60.00 MHz | |
| Standard sensitivity | 400 Lx at F11 | |
| Min subject illuminance | 1 Lx at F 1.4 | |
| S / N Ratio | 50dB or more | |
| Video Output | Progressive scanning: 31 frame/sec Digital output: 8/10/12bit switchable GigE Vision compliant |
|
| External Sync Input | None | |
| Electronic Shutter | 1/23000sec. ～1/31sec. (No shutter)～Long exposure | |
| Asynchronous Shutter | Preset fixed shutter/Pulse width control (H-reset ON/OFF settable for each) |
|
| Scanning Mode | Normal scan (all pixels)/Partial scan (central area) | |
| Lens Mount | C mount (flange back fixed) | |
| Optical Filter | None | |
| External Control | Serial interface via Ethernet | |
| Special Function | Image signal for Auto iris lens (without Sync. 0 to 0.7V) Function of imposing setting information over output image Function of monitoring internal temperature of camera Function of storing camera ID information |
|
| Power Supply | DC12V±10%, 500mA (Max.) | |
| Outside Dimension | 36(W) × 31(H) × 69(D)mm(connector excluded) | |
| Weight | Approx. 120g | |

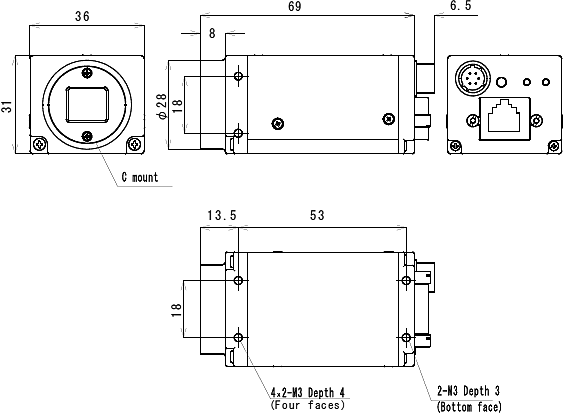

Dimensional Outline Drawing
