HomeLow-cost and small-size CCD video camera
TM-524NC
Overview
- Small-size B/W CCD video camera about the size of a D battery.
- Low-cost 0.38 million pixel camera best suited to monitoring application.
- Possible to connect directly to audio/video (AV) terminal of home-use TV or VTR.
Features
- The electronic shutter auto-iris function is operative even for a manual-iris lens.
- AGC and gamma characteristics can be set by the DIP switch so that it is easy to use not only for monitoring application but also for industrial use.
- Possible to reduce overall dimensions by using CS-mount lens. If it is required to use C-mount lens, insert the provided C-mount lens adapter between lens and camera body.
- Equipped with back light correction circuit.
Accessories
- DC jack
- IRIS connecter
- C-mount lens adapter

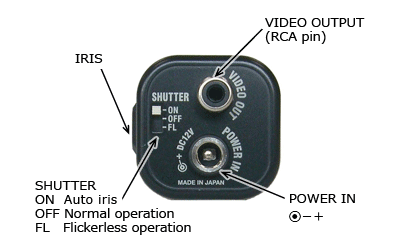

Rear panel
Configuration switch
Specifications
| Image sensor | Interline transfer 1/2" size CCD | |
|---|---|---|
| Effective pixels | 768 (H) × 494 (V) | |
| Pixel size | 8.4µm (H) × 9.8µm (V) | |
| Scanning method | 2 : 1 interlaced scanning | |
| Sync system | Internal sync | |
| Image signal output | 1.0 Vp-p 75 Ω unbalanced | |
| Horizontal resolution | 570 TV lines | |
| Min subject illuminance | 0.01 lx F1.4 (AGC Lo) 0.003 Lux F1.4 (AGC Hi) |
|
| S / N ratio | 50 dB (AGC OFF, γ=1) | |
| Shutter | ON | 1/60 to 1/100000 sec (Electric iris) |
| OFF | 1/60 sec (Normal operation) | |
| FL | 1/100 sec (Flickerless operation) | |
| AGC | ON | AGC Lo : 5 to 20 dB, AGC Hi : 5 to 32dB |
| OFF | AGC OFF : 10dB | |
| Gamma | γ=0.45(ON)/1.0(OFF) Switchable | |
| Back light correction | ON/OFF Selectable | |
| Supply voltage | 12 VDC±10%, 135 mA typ. | |
| Outside dimension | 36 (W) × 36 (H) × 58.7 (D) mm | |
| Weight | Approx. 90 g | |
| Lens mount | CS mount /C mount (with adapter) | |

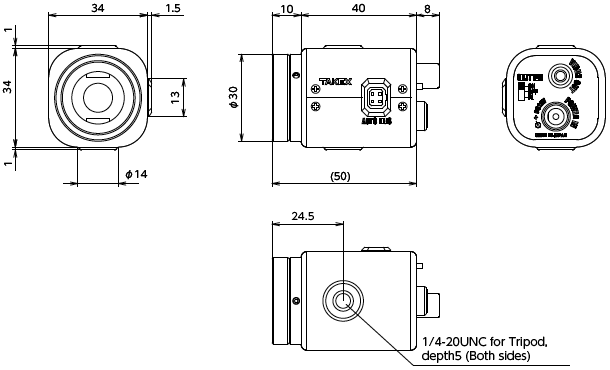

Dimensional Outline Drawing
