Power supply unit specifically for Line scan camera
AD-50

AD-50

Overview

AD-50 supplies power to a Line scan camera (JB or F-series line scan camera) and also sends CLOCK signal and SYNC signal (RS422) generated by the capture board to a Line scan camera.

Features

  • It can easily construct the communication link (RS232C) connecting with PC and our Line scan camera (JB,F-series camera)
  • Input signals:
    CLOCK signal (RS-422)  20MHz max.
    SYNC signal (RS-422)   4.5kHz max.
  • Output signals:
    12V DC, 0.8A
    CLOCK signal (RS422)
    SYNC signal (RS-422)

Block diagram

Specifications

Input CLOCK (RS-422), Input range 20MHz max.
SYNC (RS-422), Input range 4.5kHz max.
Output 12V DC, 0.8A
CLOCK (RS-422)
SYNC (RS-422)
Supply voltage 85 to 240V AC, 50/60Hz
Power consumption 20VA or less
Connecting method Metal outlet
Weight 0.6 kg
Outside dimension 150 (W) × 38 (H) × 130 (D) mm

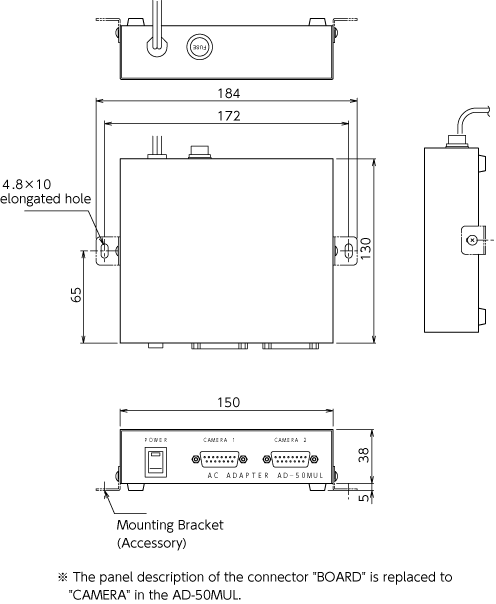

Dimensional Outline Drawing

Dimensional Outline Drawing
