7300 pixels × 3, 15kHz Scan rate, Camera Link compliant
Digital color line scan camera
TLC-7300UCL

The TLC-7300UCL is industrial use digital line scan camera using the CCD linear image sensor.
RGB × 7, 300 photo diodes are located lineally in the package of the sensor.
The video signal is output is compliant with Camera Link (Base / Medium Configuration) in 8-bit resolution.
The high speed operation at 120MHz data rate (Medium configuration mode) and 80MHz data rate (Base configuration mode).
Easy to control data rate, gain, offset and balance of odd/even pixel via serial communication through the capture board.

Features

High-resolution image processing system can be built by connecting the various capture boards of each manufacturer.
High S / N images are obtained with 10 micron square size sensor.
Simplified shutter speed control function provides stable constant image output regardless of a change in a period of the external encoder pulse input.
Equipped with Color gap correction function.
Equipped with FFC function.
Equipped with White balance function.
Possible to get stable video signal despite a change of ambient temperature, as the dark current correction circuit is incorporated.
Operation with a single DC12 power source
The small and lightweight product by original design

Number of pixels	7300 × 3 line
Pixel size	10µm × 10µm
Photo array length	73 mm
Data rate	80 MHz (RGB)	60MHz × 2 (RGB)
Scan rate	10 kHz	15 kHz
Line transfer pulse input	100 µsec (Min)	66 µsec (Min)
Video output	8 bit Base configuration	8 bit Medium configuration
Sensitivity	50 V/lx.sec (at Gain setting 1)
Saturation exposure	0.19 lx.sec (on the element)
Dynamic range	250 (on the element)
Flange focus	28.8mm
Output ununiformity	10% standard at 50% of saturation output(on the element)
Power supply	+12 V ± 0.5 V (1.5A or less)
Operational ambient temperature	0ºC to +40
Operational humidity range	85 % MAX
Storage temperature range	-10ºC to +65ºC
Lens mount	M80, P=0.75mm

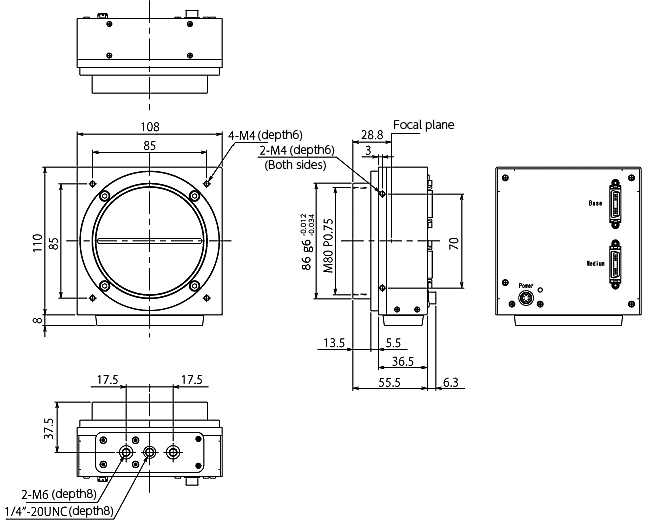

External dimension	108(W) × 110(H) × 55.5(D)mm
Weight	720g or less
