Digital line scan camera
TLC-4K7NCL(-M42D)
Overview
- Industrial digital line scan camera equipped with a CMOS image sensor which has two lines of 4,096 photodiodes arranged on a straight line.
- Since the configuration of the Camera Link (Base /Medium /Full Configuration) and clock speed (85/80/50MHz) are selectable, this camera can be set to the most suitable video output from the various combinations for the system.
- High sensitive and high speed CMOS Line Scan Camera with 4,096 pixel resolution, 80 kHz highest speed and 680 MHz maximum data rate.
Features
- Higher speed image capturing by reading out two lines at one scan.
- The large unit cell size of 7µm provides high S/N.
- Equipped with Global shutter and FFC function.
- By the Bayer color format, gap correction is not necesary.
- DC12V single power operation.
Applications
- Input device for visual inspection systems using image processing.
- Input device for visual inspection systems that require color images.
- Input device for visual inspection systems for the surfaces of sheet-like objects.
- Input device for high-resolution pattern inspection instruments.
- Besides, input device for various image processing using a computer.
Spectral sensitivity
Specifications
| Type | TLC-4K7NCL(-M42D) |
|---|---|
| Image sensor | CMOS (Bayer) |
| Number of pixels | 4096 × 2line |
| Pixel size | 7µm × 7µm |
| Photo array length | 28.672mm |
| Scan rate (Data rate) |
Full 75kHz (80MHz × 8TAP) Full 47kHz (50MHz × 8TAP) Medium 40kHz (85MHz × 4TAP) Medium 38kHz (80MHz × 4TAP) Medium 24kHz (50MHz × 4TAP) Base 20kHz (85MHz × 2TAP) Base 19kHz (80MHz × 2TAP) Base 12kHz (50MHz × 2TAP) 80kHz (85MHz × 8TAP) |
| Video output (Digital output) |
8bit Full Configuration 8bit·10bit Medium/Base Configuration |
| Saturation exposure | 46ke-(typical value) |
| Dynamic range | 60dB(on the element) |
| Output ununiformity | 10％ standard at 50% of saturation output (on the element) |
| Power supply | +12V ±0.5V (0.5A or less) |
| Operational ambient | 0℃～40℃ |
| Operational humidity range | 85% Max |
| Storage temperature range | -10℃～65℃ |
| Lens mount | F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm) |
| Connectors | Power Input HR10A-7R-6P (Hirose Digital output Camera Link (MDR) |
| External dimension | 80(W)×100(H)×60.4(D) mm |
| Weight | 460g or less |
| Additional function | FFC compensation Additional function Base /Medium/ Full config. Switchable(only 4096NCL supported full config.) Horizontal / vertical binning , horizontal/ vertical averaging Switchable clock speed |

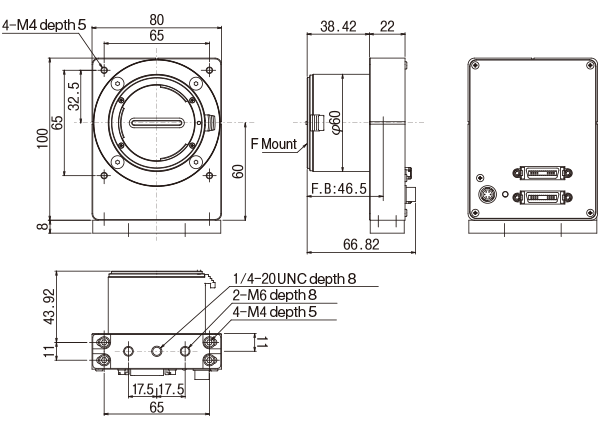

Dimensional Outline Drawing
