Digital line scan camera
TLC-16K5FCL
Overview
- High-resolution and High-speed
- Various video output combinations are achieved by selecting the transmission clocks such as 85/60/40MHz according to the system.
- Features RGB 3 line, 16,384 pixel CMOS linear image sensor
- 10.3kHz scan rate.
- Camera Link output /Medium Configuration 85MHz×6TAP data rate.
Features
- The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
- Equipped with Global shutter function and FFC function.
- Small and lightweight product with unique design
- The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
Applications
- Input device for pattern inspection instruments
- Inspection device applications for silicon wafers and LCD panels
- Measuring equipment such as appearance inspection device or dimensional measurement device
- Input device for sheet surface inspection systems
- Image input device for high definition image inspection
- Data entry device for image processing units employing computer

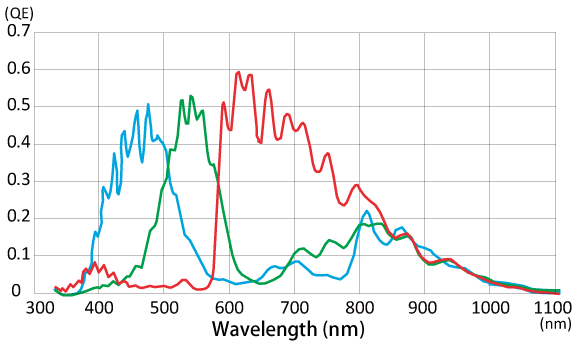

Spectral sensitivity
Specifications
| Type | TLC-16K5FCL |
|---|---|
| Image sensor | Color Global shutter CMOS |
| Number of pixels | 16,384 × 3Line Line pitch 5µm |
| Pixel size | 5µm×5µm |
| Photo array length | 81.92mm |
| Data rate | Medium 85MHz×6Tap |
| Scan rate | 10.3 kHz |
| Line transfer pulse input | 97.1µsec (Min) |
| Digital video output | Camera Link |
| Saturation exposure | 40 ke- (typical value) |
| Flange back | 12mm |
| Power supply | +12V±0.5V (0.8A or less) |
| Lens mount | M95, P=1mm |
| Operational ambient temperature | 0℃～40℃ (with no icondensation) |
| External dimension | 102(W)×130(H)×37(D) |
| Weight | 750g or less |

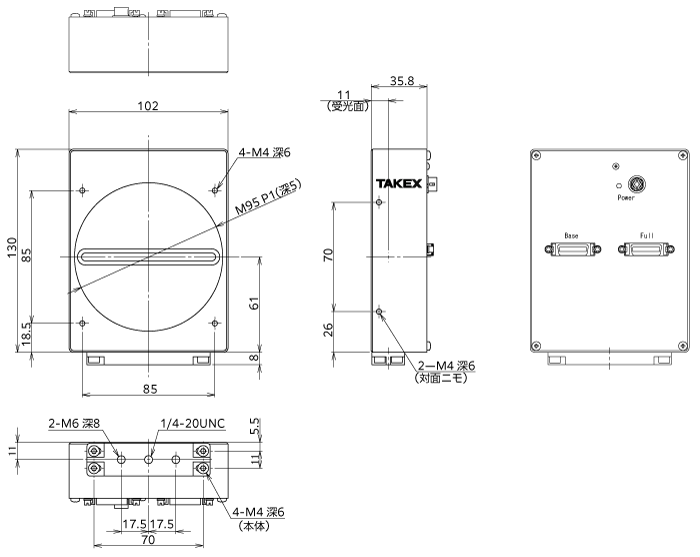

Dimensional Outline Drawing
