8,192 Pixels, 80kHz Scan Rate, Camera Link compliant
Digital line scan camera
TL-8K35NCL(-M42D)

The TL-8K35NCL(-M42D) inherits the specifications of the conventional model TL-8K35ACL, and has additional specifications the binning mode and the switching function of clock speed.
Approximately twice the sensitivity is achieved by the vertical binning function
Since the configuration of the Camera Link (Base / Ful l Conf igurat ion) and a clock speed (85/80/50MHz) can be selected, it is possible to set a suitable video output format for the system.
Since this model inherits the external dimentions and other specifications of the conventional model, it is easy to replace.
Industrial digital Line scan camera equipped with CMOS image sensor which has linearly arranged 8,192 photodiodes.
CMOS line scan camera with 8,192 pixel resolution, 80/35kHz scan rate and 680/400/160MHz data rate.

Features

It matches well to most of capture boards from other manufacturers, which makes it possible to construct high-precision image processing systems.
Possible to get high-definition images thanks to 3.5µm square pixel size.
Equipped with Global shutter function and FFC function.
Anti-blooming function is incorporated.
Possible to switch between Base and Full config. mode via serial communication.
Equipped with versatile F-mount.
Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
The equipment operates with a single DC12V power source.
Reduction in size and weight is realized by original design.

Inspection equipment for liquid crystal panel
Image processing device for image inspection
Measuring equipment such as appearance inspection device or dimensional measurement device
Surface inspection device for sheet-like object
High-resolution pattern inspection instrument
Data entry device for image processing unit employing computer

Type	TL-8K35NCL(-M42D)
Image sensor	Global shutter CMOS
Number of pixels	8,192
Pixel size	3.5µm×3.5µm
Photo array length	28.672mm
Scan rate （Data rate）	Full 80kHz（85MHz×8TAP） Full 80kHz（80MHz×8TAP） Full 43kHz（50MHz×8TAP） Base 18kHz（80MHz×2TAP） Base 12kHz（50MHz×2TAP）
Video output (Digital output)	8bit/10bit/12bit Base Configuration 8bit Full Configuration
Line transfer pulse input	12.5µsec (Min)
Sensitivity	gain1=1.2, gain2= 4.8 DN/nj/cm²
Saturation exposure	23 ke- (typical value)
Dynamic range	60dB (on the element)
Output ununiformity	10% standard at 50% of saturation output
Power supply	+12V±0.5V (0.5A or less)
Operational ambient temperature	0℃～40℃ (with no condensation)
Operational humidity range	85% Max
Storage temperature range	-10℃～65℃ (with no icing or condensation)
Weight	460g or less

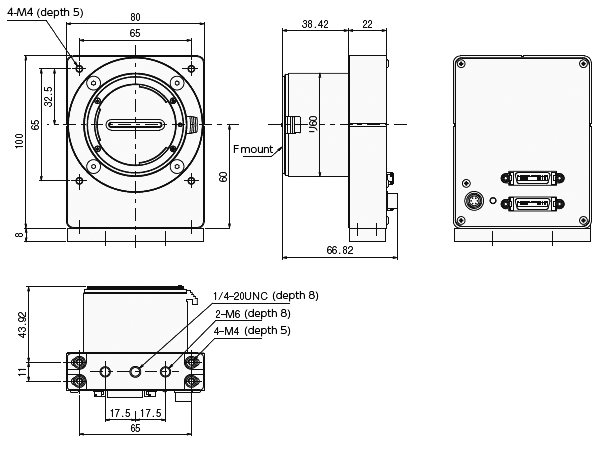

External dimension	80(W)×100(H)×60.4(D) size except the salient
Lens mount	F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm)
Additional function	FFC compensation Base / Full config. switchable Horizontal / vertical binning , horizontal/ vertical averaging Switchable clock speed
