Home5150 Pixels, 7.45kHz Scan rate, Camera Link compliant
Digital line scan camera
TL-5150UCL
Overview
- TL-5150UCL is the Industrial Digital Line Scanner employing CCD linear image sensor with linearly arranged 5,150 photodiodes.
- The photodiodes are scanned at a rate of 40MHz (0.025µsec) each and scanned data are output as video signal. The scanning time per line is 134.2µsec.
- 8 or 10bit digital video output complying with Camera Link (Base configuration)
- GAIN, OFFSET and 8/10 bit format can be easily adjusted by serial communication command.
Features
- The equipment operates with a single DC12V power source.
- The pixel size is large enough (70µm) to obtain high S/N images.
- Reduction in size and weight has been realized by adopting original circuit and mechanism design.
- Simplified exposure control function is incorporated.(at below 3.2kHz in scan rate)
Applications
- Image processing device for image inspection
- Appearance inspection device or Dimensional measurement device
- Surface inspection device for sheet-like object
- High-resolution pattern inspection instrument
Spectral sensitivity
Specifications
| Number of pixels | 5150 |
|---|---|
| Pixel size | 7µm ×7µm |
| Photo array length | 36.05 mm |
| Data rate | 40 MHz |
| Scan rate | 7.45 kHz Max |
| Line transfer pulse input | 134.2 µsec |
| Video output | Base Configuration 2 × 8/10 bit: |
| Sensitivity | 50 V/lx.sec |
| Saturated exposure amount | 0.23 lx.sec (on the element) |
| Output ununiformity | 3 % standard at 50 % of saturation output (on the element) |
| Power supply | DC +12 V ± 0.5 V (350 mA or less) |
| Operation temperature range | 0 to +40ºC |
| Operation humidity range | 85 % Max. |
| Storage temperature range | -10 to +65ºC |
| Weight | 360 g or less |
| External dimension | 64 (W) × 64 (H) × 80.3 (D) |
| Lens mount | F Mount |

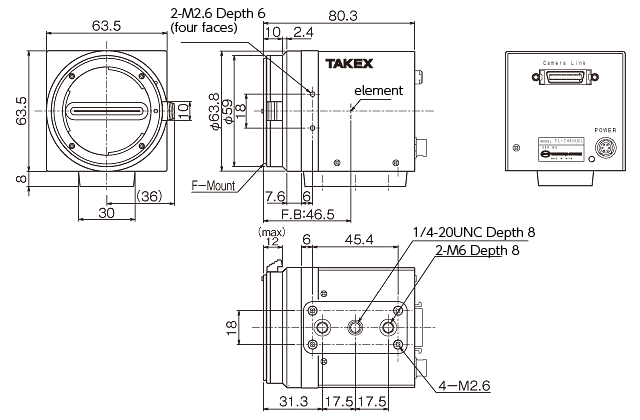

Dimensional Outline Drawing
