HomeCamera Link compliant
Digital line scan camera
TL-4096UCL/TL-2048UCL
Overview
- Industrial Digital Line Scan Camera employing CCD linear image sensor.
- CCD Line scanner with 2048/4096 pixels operating at 50MHz data rate.
- 8 or 10bit digital video output complying with Camera Link (Base configuration)
- Camera gain is selectable from 50 to 400V/Lux・sec in 8 steps.
- Sensitive camera over a spectral region from visible to infrared light.
- GAIN, OFFSET and Exposure time etc. can be set via serial communication.
Instruction Manual PDF (TL-2048UCL:626KB) Instruction Manual PDF (TL-4096UCL:639KB)
Features
- Restriction on the encoder signal specs is significantly relaxed as the asynchronous shutter function is equipped. Hence, clear images can be obtained even when the line speed of the object is not stable.
- Anti-blooming function is incorporated. That reduces the blooming effect resulting in blur or running image at a saturating area that arises from excessive light getting into CCD.
- Despite the periodic fluctuation of input pulse of the external encoder, stable images can be obtained thanks to exposure control function.
- Reduction in size and weight has been realized by adopting original circuit and mechanism design.
- Possible to get crisp images as output characteristics of ODD and EVEN pixels hardly vary at all.
- The equipment operates with a single DC12V power source.
Applications
- Defect inspection device for silicon wafer
- Image processing device for image inspection
- Appearance inspection device or Dimensional measurement device
- Surface inspection device for sheet-like object
- Data entry device for image processing unit employing computer
Specifications
| TL-2048UCL | TL-4096UCL | |
| Number of pixels | 2048 | 4096 |
| Pixel size | 10µm×10µm | |
| Photo array length | 20.48mm | 40.96mm |
| Data rate | 50MHz | |
| Scan rate | 23.8kHz（Max） | 11.9kHz（Max） |
| Video output | Camera Link (Base configuration) compliant 2×8/10 bit: |
|
| Sensitivity | 50 V/lx.sec (Gain setting1) | |
| Dynamic range | 5,500 (Standard, on the element) | |
| Saturation exposure | 1.3 lx.sec | |
| Output ununiformity | 3 % standard at 50 % of saturation output (on the element) |
|
| Power supply | DC12V 550mA | DC12V 650mA |
| Operation temperature range | 0 to +40℃ | |
| Operation humidity range | 85 % or less | |
| Storage temperature range | -10℃ to +65℃ | |
| Lens mount | F Mount | |
| External dimension | 64(W)×64(H)×80.3(D) | |
| Weight | 360 g or less | |

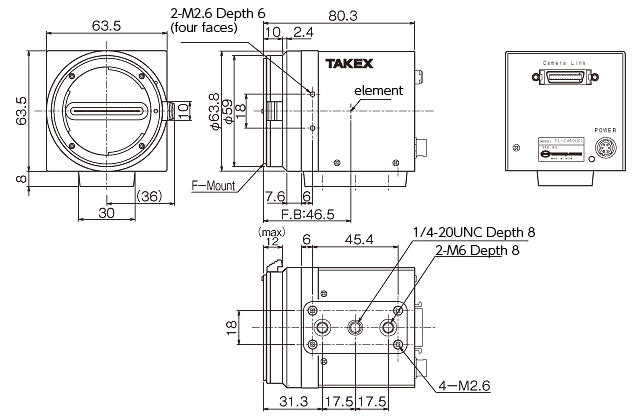

Dimensional Outline Drawing
