Digital line scan camera
TL-4096NCL(-M42D)/TL-2048NCL(-M42D)/TL-2048NCLC
Overview
- Industrial Digital Line Scanner employing CMOS image sensor with linearly arranged 4,096 (TL-4096NCL) or 2,048 photodiodes.
- High Sensitivity by Large-sized Pixel of 7µm × 7µm.
- High speed CMOS Line Scan Camera featuring 80kHz scan rate at 400MHz(TL-4096NCL) or 200MHz(TL-2048NCL) data rate.
- Horizontal and vertical binning mode provides about 4 times higher sensitivity compared with standard scanning mode.
- Each Camera Link connection format of Full (TL-4096NCL only), Medium and Base configuration and clock speed (50MHz/85Mhz) are selectable. That achieves flexibility of image data output for various applications.
Features
- Setup parameters can be controlled by the communication command (RS232C) from the capture board.
- Global shutter function, FFC function, and anti-blooming function are equipped.
- DC 12V single power operation
- Built-in dark current compensation circuit provides stable output under the change in the ambient air temperature.
- Very compact and lightweight by the unique circuit and mechanism design
- Versatile F-mount or C-mount (TL-2048NCLC only) is employed.
Applications
- Image processing device for image inspection
- Inspection equipment for liquid crystal panel
- Measuring equipment such as appearance inspection device or dimensional measurement device
- Surface inspection device for sheet-like object
- High-resolution pattern inspection instrument
- Data entry device for image processing unit employing computer
Spectral sensitivity
Specifications
| Type | TL-4096NCL(-M42D) | TL-2048NCL/NCLC(-M42D) |
|---|---|---|
| Image sensor | Global shutter CMOS | |
| Number of pixels | 4,096 | 2,048 |
| Pixel size | 7µm × 7µm | |
| Photo array length | 28.672mm | 14.336mm (Optical size 1") |
| Digital Video output | 8/10/12bit Base, Medium 8bit Full Configuration |
8bit/10/12bit Base, Medium Configuration |
| Scan rate (Data rate) |
Full 80kHz（50MHz×8TAP） Medium 80kHz（85MHz×4TAP） Medium 47.4kHz（50MHz×4TAP） Base 40.9kHz（85MHz×2TAP） Base 24kHz（50MHz×2TAP） |
Medium 80kHz（50MHz×4TAP） Base 80kHz（85MHz×2TAP） Base 47.4kHz（50MHz×2TAP） |
| Line transfer pulse input | 12.5µsec (Min) | |
| Sensitivity | gain1 = 1.2, gain2 = 4.8 (DN/nj/cm2) | |
| Saturation exposure | 46 ke- (typical) | |
| Dynamic range | 60dB (on the element) | |
| Output ununiformity | 10 % standard at 50 % of saturation output | |
| Power supply | +12V ±0.5V (0.5 or less) | |
| Operational ambient temperature | 0℃ to 40℃ (with no condensation) | |
| Operational humidity range | 85% Max | |
| Storage temperature range | -10℃ to 65℃ (with no icing or condensation) | |
| Gain | Analog gain : ×1 or ×4 ADC gain: ×0.2 to ×5.7 Digital gain: ×1 to ×5 (×0.125 step) |
|
| Lens mount | F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm) | F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm) C mount (F.B. :17.526mm) |
| Connector | DC12V operation power supply (HR10A-7R-6P/HIROSE ELECTRIC) Digital output (MDR type Camera Link connector) |
|
| External dimension | 80(W) × 100(H) × 60.4(D)mm (Connector excluded) | |
| Weight | 460g or less | |
| Additional function | FFC compensation Additional function Base /Medium/ Full config. Switchable(only 4096NCL supported full config.) Horizontal / vertical binning , horizontal/ vertical averaging Switchable clock speed |
|
Dimensional Outline Drawing

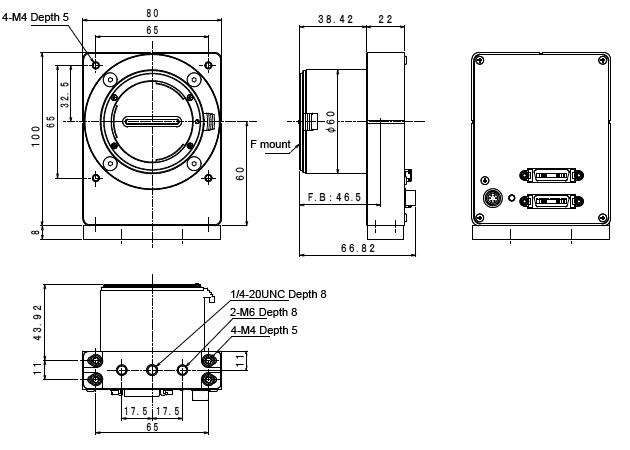

TL-4096NCL/TL-2048NCL

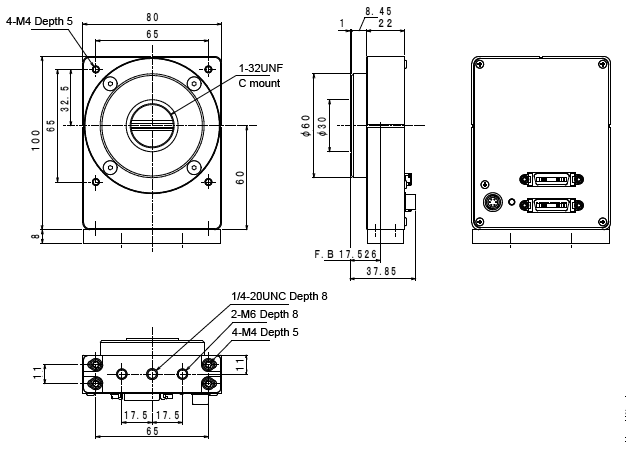

TL-2048NCLC
