16,384 Pixels, 40kHz Scan Rate, Camera Link compliant
Digital line scan camera
TL-16KNCL

The TL-16KNCL inherits the specifications of the conventional model TL-16KACL, and has additional specifications the binning mode and the switching function of clock speed.
Approximately twice the sensitivity is achieved by the vertical binning function.
Since the configuration of the Camera Link (Full Configuration) and a clock speed (85/80/40MHz) can be selected, it is possible to set a suitable video output format for the system.
Since this model inherits the external dimentions and other specifications of the conventional model, it is easy to replace.
Industrial digital Line scan camera equipped with CMOS image sensor which has linearly arranged 16,384 photodiodes.
High-resolution and High-speed CMOS Line Scan Camera featuring 16,384 image pixels, 40/35 kHz scan rate and 640 MHz data rate.

Features

Since various models of capture boards from board manufacturers can be connected, it is easy to get high-precision images from the camera.
3.5µm square pixel size provides high-definition images.
Equipped with Global shutter function and FFC function.
Anti-blooming function is incorporated.
Clear image data is obtained by the small difference of the characteristics of the odd and even-numbered pixels.
Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
DC 12V single power operation
Reduction in size and weight is realized by original design.

LCD panel inspection equipment applications
Image processing device for image inspection
Measuring equipment such as appearance inspection device or dimensional measurement device
Surface inspection device for sheet-like object
High-resolution pattern inspection instrument
Data entry device for image processing unit employing computer

Type	TL-16KNCL
Image sensor	Global shutter CMOS
Number of pixels	16,384
Pixel size	3.5µm×3.5µm
Photo array length	57.344 mm
Scan rate （Data rate）	Full 40kHz（85MHz×8TAP） Full 35kHz（80MHz×8TAP） Full 17.5kHz（40MHz×8TAP）
Line transfer pulse input	25µsec (Min)
Video output (Digital output)	8bit Full Configuration
Sensitivity	gain1=1.2, gain2= 4.8 DN/nj/cm²
Saturation exposure	23 ke- (typical value)
Dynamic range	60dB (on the element)
Output ununiformity	10% standard at 50% of saturation output
Power supply	+12V±0.5V (0.6A or less)
Operational ambient temperature	0℃～40℃ (with no icondensation)
Operational humidity range	85% Max
Storage temperature range	-10℃～65℃ (with no icing or condensation)
Weight	480g or less

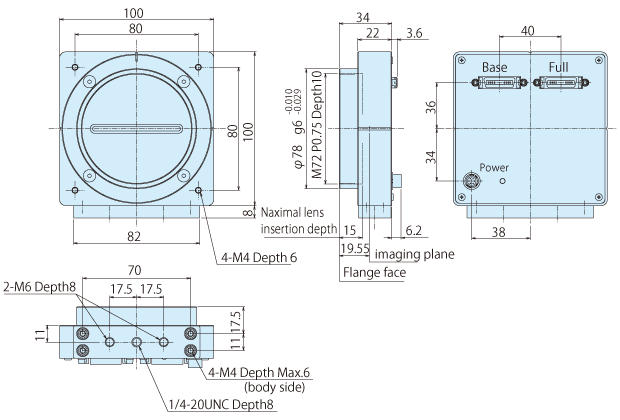

External dimension	100(W)×100(H)×34(D)mm
Lens mount	M72, P=0.75mm F.B. 19.55mm
Additional function	FFC compensation Vertical binning , averaging Switchable clock speed
