16,384 Pixel CMOS sensor, Opt-C:Link compliant
Digital line scan camera
TL-16K5FOL

Overview

• High resolution image can transmitted high speed of 38.9kHz at distances of up to 100 meters by the Opt-C:Link interface.
• The scan rate is 38.9kHz at single line mode, 34.0×2kHz at dual line mode.
• Equipped with a CMOS linear image sensor with 16,384 pixels and 2 lines *There is 1 line at single line mode.
• By adopting the OPTCLINK interface, high-speed(TLC-16K5FOL:22.7KHz,TL-16K5FOL:38.9KHz) image transmission at 100 Mbps is possible.
• Features 2 line, 16,384pixel CMOS linear image sensor
• Camera Link Medium Configuration output with 85 MHz/6TAP data rate
• Equipped with a CMOS linear image sensor with 16,384 pixels and 2 lines
  *There is 1 line at single line mode.

Features

• The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
• Equipped with Global shutter function and FFC function.
• Small and lightweight product with unique design
• Doubles the sensitivity by using 2 line TDI mode.
• The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
• The impact of noise during cable transmission is significantly reduced, because it uses optical communication.
• Wire saving

Applications

• Input device for pattern inspection instruments
• Inspection device applications for silicon wafers and LCD panels
• Measuring equipment such as appearance inspection device or dimensional measurement device
• Input device for sheet surface inspection systems
• Image input device for high definition image inspection
• Data entry device for image processing units employing computer

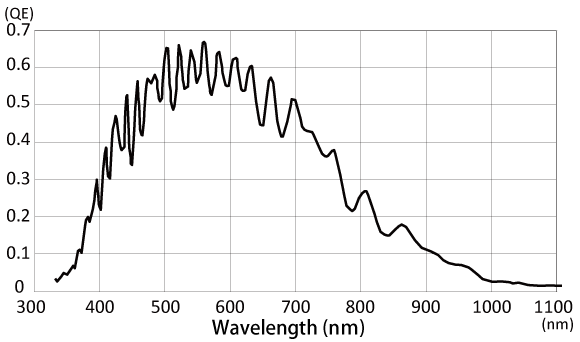

Spectral sensitivity

Specifications

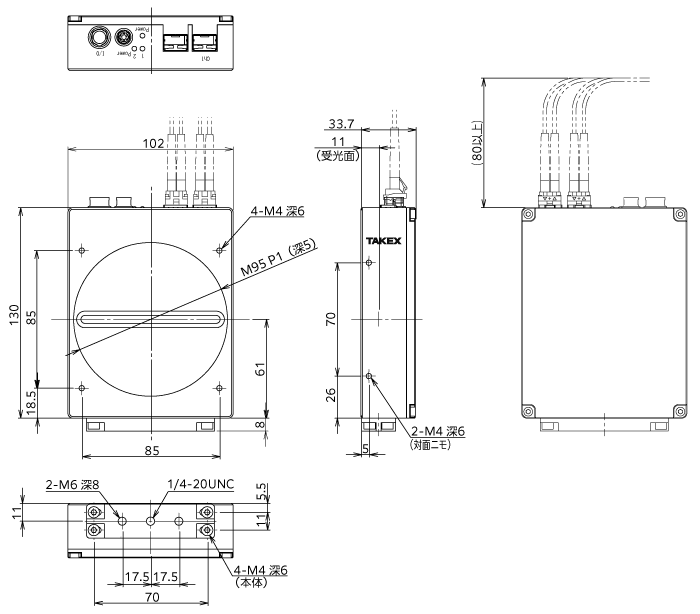

Dimensional Outline Drawing
