GigE Vision compliant, 5 Megapixel 20fps, 3 Megapixel 30fps
Progressive scan color camera
FSM5MLGE/FSM3MLGE

FSM5MLGE/FSM3MLGE

Overview

  • Progressive scan color camera equipped with a high sensitivity and high-resolution CMOS sensor.
  • It is possible to output at high-resolution progressive image the FSM5MLGE in 20 fps at 5million pixels, FSM3MLGE in 30 fps at 3million pixels.
  • Image output is interfaced with 8/10/12 bit digital signal.(RGB BAYER ALAY, RAW OUTPUT)
    (GigE Vision format)
  • Asynchronous electronic shutter function provides still full progressive images at any timing.
    (Asynchronous shutter mode)
  • It is possible to be controlled externally the internal set values of camera by serial communication via Ethernet.


Features

  • Capable of image transmission over 100m without repeater.
  • Since these products are equipped with a 5 Megapixel-2/3" (FSM5MLGE) or a 3 Megapixel-1/1.8" (FSM3MLGE) CMOS sensor, they are suitable for replacing existing 5 Megapixel or 2 Megapixel CCD cameras.
  • The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
  • It is possible to be supplied power by the camera connector on the back, or PoE method by LAN cable.
  • Advanced CMOS imaging element allows high-quality images with little fixed pattern noise to be obtained.
  • Achieves faster speed operation limiting the number of read-out line.

Applications

  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Input device of board inspection equipment for automatic chip mounter
  • Image input device for ITS
  • Other image processing applications requiring high speed and high resolution

Spectral sensitivity

Spectral sensitivity

Specifications

Model FSM5MLGE FSM3MLGE
Image sensor Progressive scanning,Global shutter, Color CMOS(RGB Bayer arrey)
Unit cell size : 3.45µm(H)×3.45µm(V)
2/3 inch size 1/1.8 inch size
Number of pixels 5.06 million pixels
2,464(H)×2,056(V)		 3.18 million pixels
2,064(H)×1,544(V)
Video output Switchable 8/10/12bit(RAW DATA). Gig E format compliant
Electronic shutter 1/26,000 sec. ～ 1/28,000 sec. ～
Asynchronous shutter Pre-settable fixed exposure
Scanning mode Full screen / Partial (Specified lines readout) / Binning
Lens mount C mount (Fixed flange back)
Power supply Camera connector（6Pin)/PoE：DC12V±10% 380mA or less
Via PoE : DC42V ～ 57V (48V STD) 140mA or less
IEEE802.3af standard-compliant
Storage tempurature range 0℃～40℃ (with no condensation）
External dimension 48(W)×45(H)×51(D) Excluding protrusions
Weight 150g

Note that specifications are subject to change without notice for improvement.

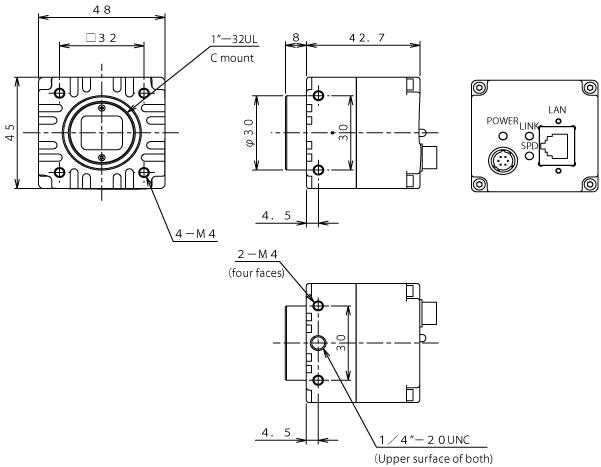

Dimensional Outline Drawing
