GigE Vision compliant, 12megapixels, 6frame/sec
Progressive scan color camera
FSM12MGE

FSM12MGE

Overview

  • The FSM12MGE is a color progressive camera equipped with a high sensitivity and high-resolution CMOS sensor.
  • Outputs progressive images in 6fps, with 12million pixels.
  • The noise is reduced by adopting the rolling shutter receiving light at a large area.
  • Video signal is output complying with Gigabit Ethernet in progressive scanning (non-interlaced scanning) format.
  • By global reset using a strobe light simultaneously, the random shutter (async reset) works like a global shutter mode.


Catalog PDF

Features

  • Capable of image transmission over 100m without repeater.
  • The high-sensitivity CMOS sensor enables the adoption of general purpose C-mount, despite the12 million highpixels
  • Reduced size and weight by original mechanism and electrical circuit design
  • Power can be supplied either camera connector on the back panel or via a LAN cable (PoE).

Applications

  • Input device for electronic shutter image processor
  • Appearance inspection device
  • Monitoring equipment
  • Inspection device for electronic packaging
  • Inspection equipment for liquid crystal panel
  • Data entry device for image processing unit employing computer

Spectral sensitivity

Spectral sensitivity

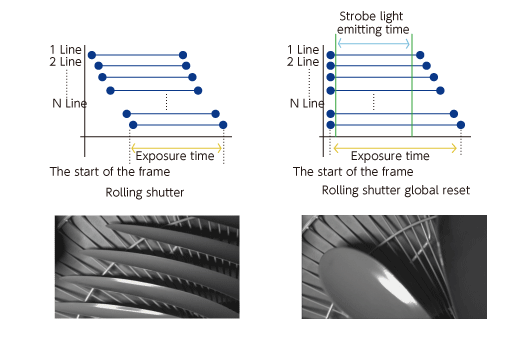

Global reset shutter

By synchronizing with strobe light using the global reset function, the same effect as global shuttering can be obtained.

* Always use strobe lighting for the exposure time in global reset mode.
(Compared with the global shutter, it requires a cut-off of the external light in the global reset mode.)

Global reset shutter

Specifications

Image sensor Bayer color CMOS 1 inch size
Progressive scanning/Rolling shutter system
Unit cell size:3.1µm×3.1µm
Effective pixels 4,000(H)×3,000(V)
Sensitivity 1.4V/lx・sec (on the element)
Saturation exposure 17.8Ke- (on the element)
Dynamic range 77.4dB（on the element)
Video output Progressive scanning:6frame/sec(at 8bit)
Digital output: 8bit/10bit/12bit（Gigabit Ethernet）
GigE Vision compliant
Built-in function Global reset
Lens mount C mount
Electronic shutter 100usec～90msec
Optical filter None
Operational ambient temperature 0℃～40℃ (with no condensation)
Power supply Via camera connector : DC12V±10％ 300ｍA or less
Via PoE : DC42V ～ 57V (48V STD) 110mA or less
IEEE802.3af standard-compliant
Weight 150g
Outside dimension 48(W)×45(H)×51(D) (Connector excluded)

Note that specifications are subject to change without notice for improvement.

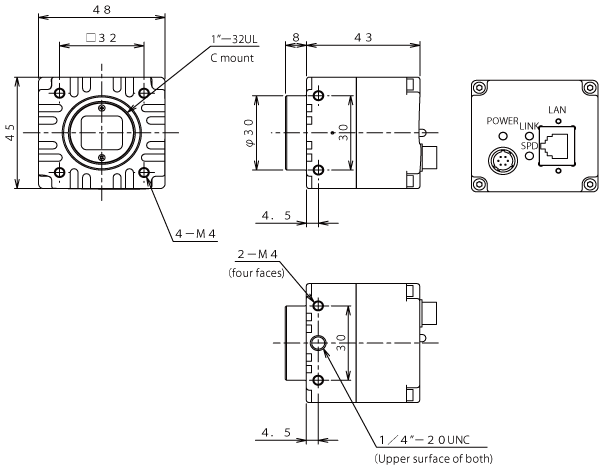

Dimensional Outline Drawing

Dimensional Outline Drawing
