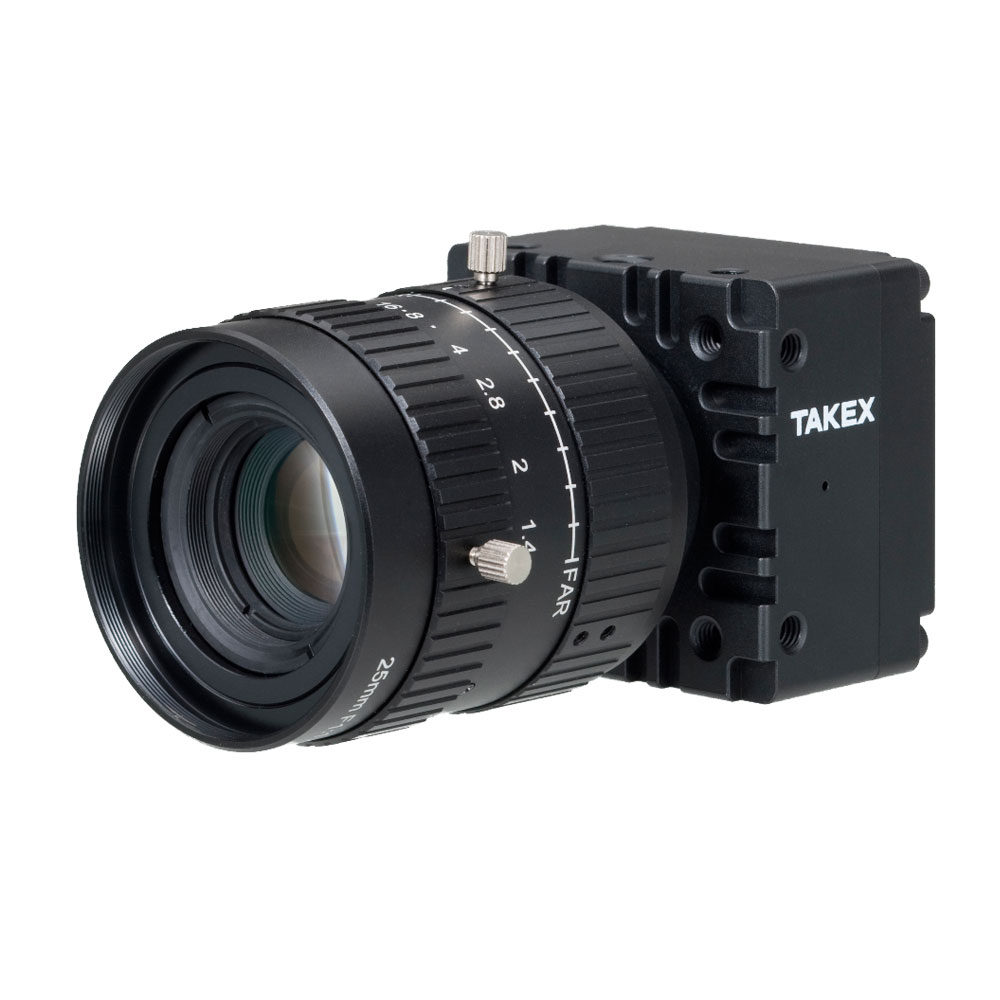

Camera Link compliant, 5 Megapixel 150 fps, 3 Megapixel 210 fps
Progressive Scan Camera
FCM5MHPL/FCM3MHPL

FCM5MHPL/FCM3MHPL

Overview

  • Progressive scan camera equipped with a high sensitivity and high-resolution CMOS sensor.
  • The FCM5MHPL outputs high-speed and high-resolution progressive image in 150 fps with 5 million pixels.
    The FCM3MHPL outputs images in 210 fps with 3 million pixels.
  • Image output is interfaced with 8/10/12 bit digital signal.
    (Camera Link format)
  • Asynchronous electronic shutter function provides still full progressive images at any timing.
    (Asynchronous shutter mode)
  • The internal set values of the camera are externally controlled with the serial communication via Camera Link.

logo_cameraLink.png logo_pocl.png

Catalog PDF

Features

  • Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
  • Since these products are equipped with a 5 Megapixel-2/3" (FCM5MHPL) or a 3 Megapixel-1/1.8" (FCM3MHPL) CMOS sensor, they are suitable for replacing existing 5 Megapixel or 2 Megapixel CCD cameras.
  • The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
  • The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration
    (with single Camera Link cable) for the low-speed operation, can be selected depending on the application.
  • Achieves faster speed operation limiting the number of read-out line.

Applications

  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Input device of board inspection equipment for automatic chip mounter
  • Image input device for ITS
  • Other image processing applications requiring high speed and high resolution

Spectral sensitivity

Spectral sensitivity

Specifications

Model FCM5MHPL FCM3MHPL
Image sensor Progressive scanning,Global shutter, Monochrome CMOS
Unit cell size : 3.45µm(H)×3.45µm(V)
2/3 inch size 1/1.8 inch size
Number of pixels 5.06 million pixels
2,464(H)×2,056(V)		 3.18 million pixels
2,064(H)×1,544(V)
Readout modes 32fps
Horizontal scanning frequency fh=67.4kHz
Vertical scanning frequency fv=32.2Hz
Driving clock frequency fclk=84MHz
Digital output Gradation 8bit/12bit (Base Config.)		 48fps
Horizontal scanning frequency fh=76.6kHz
Vertical scanning frequency fv=48.7Hz
Driving clock frequency fclk=84MHz
Digital output Gradation 8bit/12bit (Base Config.)
150fps
Horizontal scanning frequency fh=314.6kHz
Vertical scanning frequency fv=150.2Hz
Driving clock frequency fclk=80MHz
Digital output Gradation 8bit (Deca Config.)		 210fps
Horizontal scanning frequency fh=333.0kHz
Vertical scanning frequency fv=210.5Hz
Driving clock frequency fclk=80MHz
Digital output Gradation 8bit (Deca Config.)
Video output 8bit Camera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration)
12bit Camera Link format compliant Medium/Base Configuration
Electronic shutter 1/59,000 sec. ～
Asynchronous shutter Pre-settable fixed exposure
Scanning mode Full screen / Partial (Specified lines readout) / Binning
Lens mount C mount (Fixed flange back)
Power supply Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less
Storage tempurature range 0℃～40℃ (with no condensation）
External dimension 48(W)×45(H)×37(D) (size except the salient)
Weight 110g

Note that specifications are subject to change without notice for improvement.

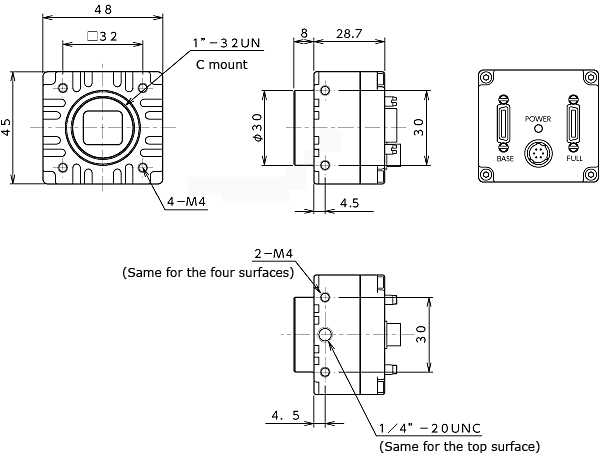

Dimensional Outline Drawing

Dimensional Outline Drawing
