HomeCMOS 4 million pixel - 170frames/sec, 2 million pixel - 330frames/sec
Progressive Scan Camera
FCM4MPL/FCM2MPL
Overview
- Equipped with high-performance CMOS image sensor designed for machine vision
- Outputs progressive images in high-speed operation (FCM4MPL: 170 frames/sec, FCM2MPL: 330 frames/sec), with high resolution (FCM4MPL: 4 million pixels, FCM2MPL: 2 million pixels) .
- The video signal is output in digital 10-bit or 8-bit digital signal (Camera Link format compliant).
- Asynchronous electronic shutter function provides still full progressive images at any timing (Asynchronous shutter mode).
- The internal set values of the camera are externally controlled with serial communication via Camera Link.
Features
- Either normal Camera Link board or PoCL board (with power over-lapping) can be connected.
- The global shutter sensor provides the image without distortion even in shooting of fast-moving objects.
- The advanced CMOS sensor provides a high-quality image with less fixed pattern noise.
- The Full Configuration (with two Camera Link cables) for a high-speed reading applications, or the Base Configuration (with single Camera Link cable) in a low-speed reading application, can be selected depending on the application.
- Achieves more-high speed operation limiting the number of read-out line
- Transmition up to 10m with the normal camera link cable is achieved by low-speed clock mode.
Applications
- Image processing device for image inspection
- Inspection equipment for liquid crystal panel
- Measuring equipment such as appearance inspection device or dimensional measurement device
- Input device of board inspection equipment for automatic chip mounter
- Image input device for ITS such as car number reading
- For other machine vision applications requires high speed and high resolution
Spectral sensitivity
Specifications
| FCM4MPL | FCM2MPL | |
|---|---|---|
| Image sensor | Progressive scanning, Global shutter CMOS 1 inch size Unit cell size 5.5µm(H)×5.5µm(V) |
Progressive scanning, Global shutter CMOS 2/3 inch size Unit cell size 5.5µm(H)×5.5µm(V) |
| Number of effective pixels | 2048(H)×2048(V) square grid pattern | 2048(H)×1088(V) square grid pattern |
| Read out scanning | 39fps Sensor Pixel clock frequency fpc=10.625MHz Horizontal scanning frequency fh=82kHz Vertical scanning frequency fv=39.7Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit/10bit (Base Config.) |
73fps Sensor Pixel clock frequency fpc=10.625MHz Horizontal scanning frequency fh=82kHz Vertical scanning frequency fv=73.8Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit/10bit (Base Config.) |
| 79fps Sensor Pixel clock frequency fpc=21.25MHz Horizontal scanning frequency fh=164kHz Vertical scanning frequency fv=79.3Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit/10bit (Medium Config.) |
147fps Sensor Pixel clock frequency fpc=21.25MHz Horizontal scanning frequency fh=164kHz Vertical scanning frequency fv=147.6Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit/10bit (Medium Config.) |
|
| 158fps Sensor Pixel clock frequency fpc=42.5MHz Horizontal scanning frequency fh=329kHz Vertical scanning frequency fv=158.7Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit (Full Config.) |
295fps Sensor Pixel clock frequency fpc=42.5MHz Horizontal scanning frequency fh=329kHz Vertical scanning frequency fv=295.2Hz Camera Link clock frequency fclk=85MHz Output gradation 8bit (Full Config.) |
|
| 179fps Sensor Pixel clock frequency fpc=48MHz Horizontal scanning frequency fh=372kHz Vertical scanning frequency fv=179.2Hz Camera Link clock frequency fclk=80MHz Output gradation 8bit (Deca Config. ) |
333fps Sensor Pixel clock frequency fpc=48MHz Horizontal scanning frequency fh=372kHz Vertical scanning frequency fv=333.4Hz Camera Link clock frequency fclk=80MHz Output gradation 8bit (Deca Config. ) |
|
| Standard sensitivity | 600Lux, F8 (6.3ms, 5100K) | 900Lux, F8 (3.3ms, 5100K) |
| Min. subject illuminance | 2Lux/F2.0 (at 39fps) | 4Lux/F2.0 (at 73fps) |
| Noise level | 3/256 (at Gain-0dB/8bit output) | 3/256 (at Gain-0dB/8bit output) |
| External sync input | None | |
| Video output (Digital output) | 8bit : Camera Link format compliant 10TAP / Full / Medium / Base Configuration | |
| 10bit : Camera Link format compliant Medium / Base Configuration | ||
| Electronic Shutter | 1/38,000 sec to no shutter to Long time exposure | |
| Asynchronous shutte | Preset shutter / Pulse width controlled shutter | |
| Scanning mode | All pixels / Partial (Reading of the specified number of rows) / Binning | |
| External control | Serial interface via Camera Link cable | |
| Lens mount | C mount (flange back fixed) | |
| Power supply | DC12V±10％, 400ｍA (Max) | |
| Operational ambient temperature | -5℃～40℃ (Without the dew condensation , Freezing) | |
| Storage temperature range | -30℃～65℃ (Without the dew condensation , Freezing) | |
| Anti-shock | 38Ｇ | |
| Anti-vibration | 10G | |
| External dimension | 50(W)×50(H)×40.5(D)mm (Connector excluded) | |
| Weight | Approx 140g | |

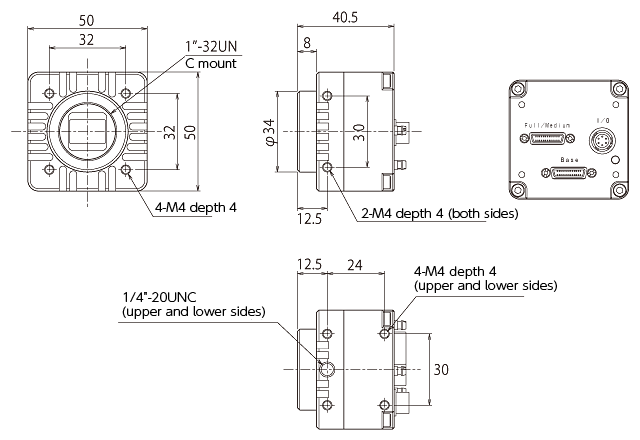

Dimensional Outline Drawing
