Camera Link compliant, 12 Megapixel 60 fps.
Progressive Scan Camera
FCM12MHPL

FCM12MHPL

Overview

  • Progressive scan camera equipped with a high sensitivity and high-resolution CMOS sensor.
  • It is possible to be externally controled the operation set values of the camera by the serial communication via Camera Link.
  • Image output is interfaced with 8/10/12 bit digital signal.
    (Camera Link format)
  • Possible to take the still full progressive images at any timing by asynchronous electronic shutter function.
    (Asynchronous shutter mode)
  • The internal set values of the camera are externally controlled with the serial communication via Camera Link.

logo_cameraLink.png logo_pocl.png

Features

  • Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
  • The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
  • The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration
    (with single Camera Link cable) for the low-speed operation, can be selected depending on the application.
  • Achieves faster speed operation limiting the number of read-out line.

Applications

  • Image processing device for image inspection
  • Inspection equipment for liquid crystal panel
  • Input device of board inspection equipment for automatic chip mounter
  • Image input device for ITS
  • Other image processing applications requiring high speed and high resolution

Spectral sensitivity

Spectral sensitivity

Specifications

Image sensor Progressive scanning,Global shutter, Monochrome CMOS
Unit cell size : 3.45µm(H)×3.45µm(V)
1.1inch size
Number of pixels 12.36million pixels
4,112(H)×3,008(V)
Readout modes 12fps
Horizontal scanning frequency fh=37.1kHz
Vertical scanning frequency fv=12.1Hz
Driving clock frequency fclk=84MHz
Digital output Gradation 8bit/12bit (Base Config.)
60fps
Horizontal scanning frequency fh=186.1kHz
Vertical scanning frequency fv=60.8Hz
Driving clock frequency fclk=80MHz
Digital output Gradation 8bit (Deca Config.)
Video output 8bit Camera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration)
12bit Camera Link format compliant Medium/Base Configuration
Electronic shutter 1/52,000 sec. ～
Asynchronous shutter Pre-settable fixed exposure
Scanning mode Full screen / Partial (Specified lines readout) / Binning
Lens mount C mount (Fixed flange back)
Power supply Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less
Storage tempurature range 0℃～40℃ (with no condensation）
External dimension 48(W)×45(H)×37(D) (size except the salient)
Weight 110g

Note that specifications are subject to change without notice for improvement.

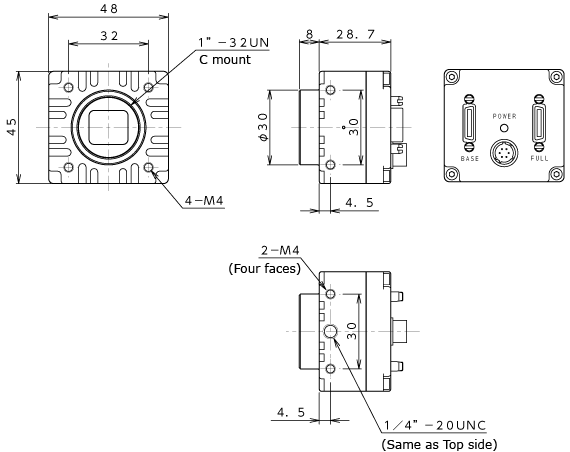

Dimensional Outline Drawing

Dimensional Outline Drawing
